Ever wondered how lasers can actually weld metals together? Laser welder is an incredibly precise and efficient technique that’s reshaping industries like aerospace, automotive, and electronics. But how exactly does it work? Let’s delve into the fascinating process and discover the secrets behind this high-tech method—could it be the ultimate solution for the future of manufacturing?
What is Laser Welding?

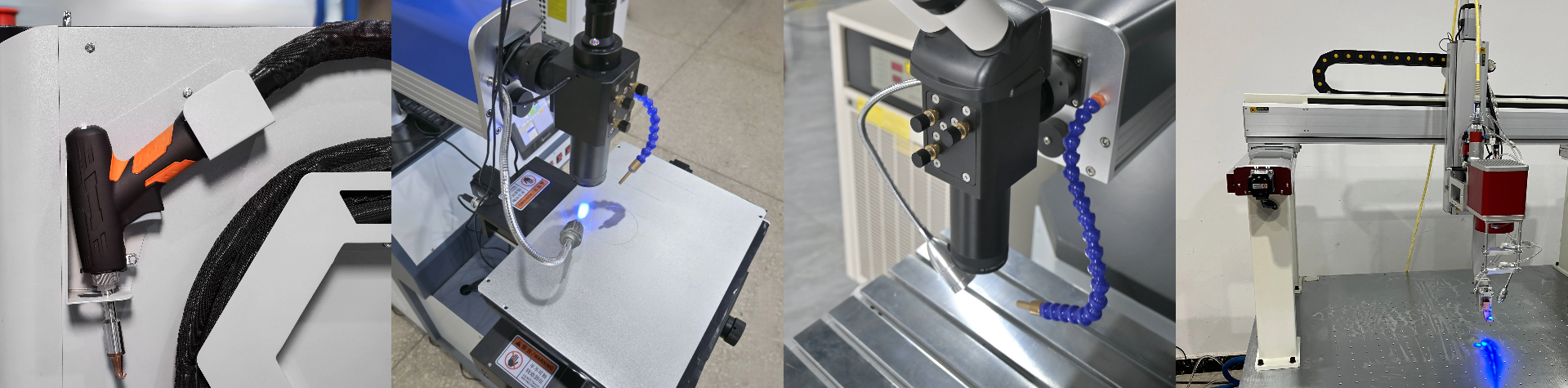

A laser welder is a precise and efficient tool for joining materials using a focused laser beam. It is commonly used in industries that require high-quality, strong welds, such as aerospace, automotive, and electronics manufacturing.
Laser Beam Generation and Delivery
A high-energy laser beam, generated by solid-state, fiber, or CO2 lasers, is focused onto a small spot on the workpiece using mirrors and lenses. The beam’s power density is crucial for generating strong welds by allowing rapid energy absorption.
Heating and Melting
A laser beam heats a material to its melting point, causing localized melting. Continuous or pulsed processing is used based on material thickness, with pulsed laser welder allowing for better heat control in thicker materials.
Keyhole Formation and Weld Pool Dynamics
In high-power laser welding, a deep keyhole forms in the molten weld pool, critical for strength and quality. Controlling the keyhole’s behavior through laser power and material properties influences the weld’s depth, strength, and appearance.
Cooling and Solidification
After the laser melts the material, the molten pool begins to cool and solidify, forming a strong bond between the welded parts. Depending on the material and setup, the cooling process may happen naturally or be accelerated, such as by quenching the weld in water.
Laser welder offers benefits such as precision, speed, and minimal thermal distortion, making it ideal for high-performance applications.
How Does Laser Welder Work?
Laser welder uses a focused beam of light to join materials. Here are the main steps involved:
Laser Beam Generation and Delivery
- A laser beam is generated using solid-state, fiber, or CO2 lasers.
- The beam is directed to the weld joint through lenses, mirrors, and fiber optics.
Beam Focus and Spot Size
- The laser beam is focused on a small spot, typically ranging from a few tenths of a millimeter to a few millimeters.
- This creates high power density, necessary for melting the materials.
Energy Absorption and Heating
- The materials absorb the energy from the focused laser beam, causing rapid heating.
- The heating intensity, measured in watts per square centimeter, determines if the material melts.
Melting and Vaporization
- Conduction Mode: Melts the material without vaporizing it, ideal for thin materials.
- Keyhole Mode: High power density vaporizes the material, forming a deep keyhole for strong welds.
Formation of the Weld
- The molten material forms a pool and solidifies to create a weld.
- In continuous welding, the laser beam moves along the joint, melting the leading edge and solidifying the trailing edge.
Use of Filler Material
- Filler material, in the form of wire or powder, may be added to improve bonding when needed.
Workpiece Manipulation and Stability
- The workpiece is stabilized using clamps or automated fixtures to ensure accuracy.
Cooling and Solidification
- After welding, the part cools naturally or is quenched, forming a strong bond with minimal deformation.
Process Variables
- Factors like laser power, energy density, beam focus, material properties, and the presence of an inert cover gas affect weld quality.
Laser Welding Modes
Laser welding with a laser welder involves different modes, each defined by power density and weld characteristics. The main modes are Conduction Mode, Transition Mode, and Keyhole Mode.
Conduction Mode
- Power Density: Below 0.5 MW/cm²
- Weld Characteristics: Produces shallow and wide welds, where the width is always greater than the depth. This mode works well for thin-walled materials and spot welding.
- Heat Transfer: Heat conduction transfers laser energy into the material. The weld depth depends on the material’s heat conductivity, typically ranging from a few tenths of a millimeter to 1 millimeter.
- Applications: Suitable for clean, aesthetic welds, such as corner joints in electronics and battery seals where cleanliness is crucial.
Transition Mode(Conduction/Penetration)
- Power Density: Around 1 MW/cm²
- Weld Characteristics: Offers moderate penetration depth with a width-to-depth ratio between 1 and 1.5. It blends features of conduction and keyhole modes.
- Keyhole Formation: Creates a partial keyhole surrounded by a molten pool, allowing deeper welds than conduction mode while limiting heat effects.
- Applications: Commonly used with pulsed Nd:YAG lasers for spot and seam welding.
Penetration Mode
- Power Density: Above 1.5 MW/cm²
- Weld Characteristics: The high power vaporizes material, forming a deep, narrow keyhole. This results in welds with an aspect ratio greater than 1.5.
- Heat Transfer: Vaporized metal forms expanding gas, creating a keyhole that tracks the laser beam. The surrounding molten material fills the cavity as the laser moves.
- Applications: Ideal for deep welds in aerospace components, turbine blades, and structural parts needing high strength.
Additional Details
- Power Range:
- Conduction Mode: Below 1 kW
- Keyhole Mode: Typically 1–6 kW, with CO₂ lasers reaching up to 25 kW
- Wavelength Range:
- Nd:YAG: 1064 nm
- CO₂: 10,600 nm
- Beam Quality: Single-mode lasers provide high power densities, making them suitable for reflective materials like aluminum and copper.
- Examples:
- Conduction Mode: Battery sealing, corner welds in electronics.
- Transition Mode: Spot and seam welding.
- Keyhole Mode: Welding turbine blades, valves for space applications, and tank bearings.
Components of a Laser Welder Machine
A laser welder has several key parts that help ensure efficient and precise welding. Understanding these components is essential for improving performance and achieving high-quality results.
1. Laser Source
The laser source generates the high-energy beam for welding. Common types include fiber laser welder, valued for their power, efficiency, and beam quality, as well as solid-state and gas lasers, suited for specific applications.
2. Optical System
The optical system focuses and directs the laser beam onto the workpiece. Key elements include: – Lenses and mirrors for beam focusing. – Optical components to guide the laser along the correct path for accurate welding.
3. Cooling System
A cooling system is crucial for managing heat during welding. It can be: – Liquid cooling: Uses coolants like water to effectively manage heat, keeping the laser source from overheating. – Air cooling: Uses air to cool the system, suitable for lower power machines.
Cooling helps preserve the integrity of thin materials and extends the life of the laser components.
4. Control System
The control system manages the entire operation of the laser welding machine. It controls key parameters such as: – Power: Adjusts the laser’s intensity. – Speed: Controls the welding speed. – Beam focus: Ensures the laser is properly focused for the best weld quality.
This system integrates all components, making it essential for precise and efficient welding.

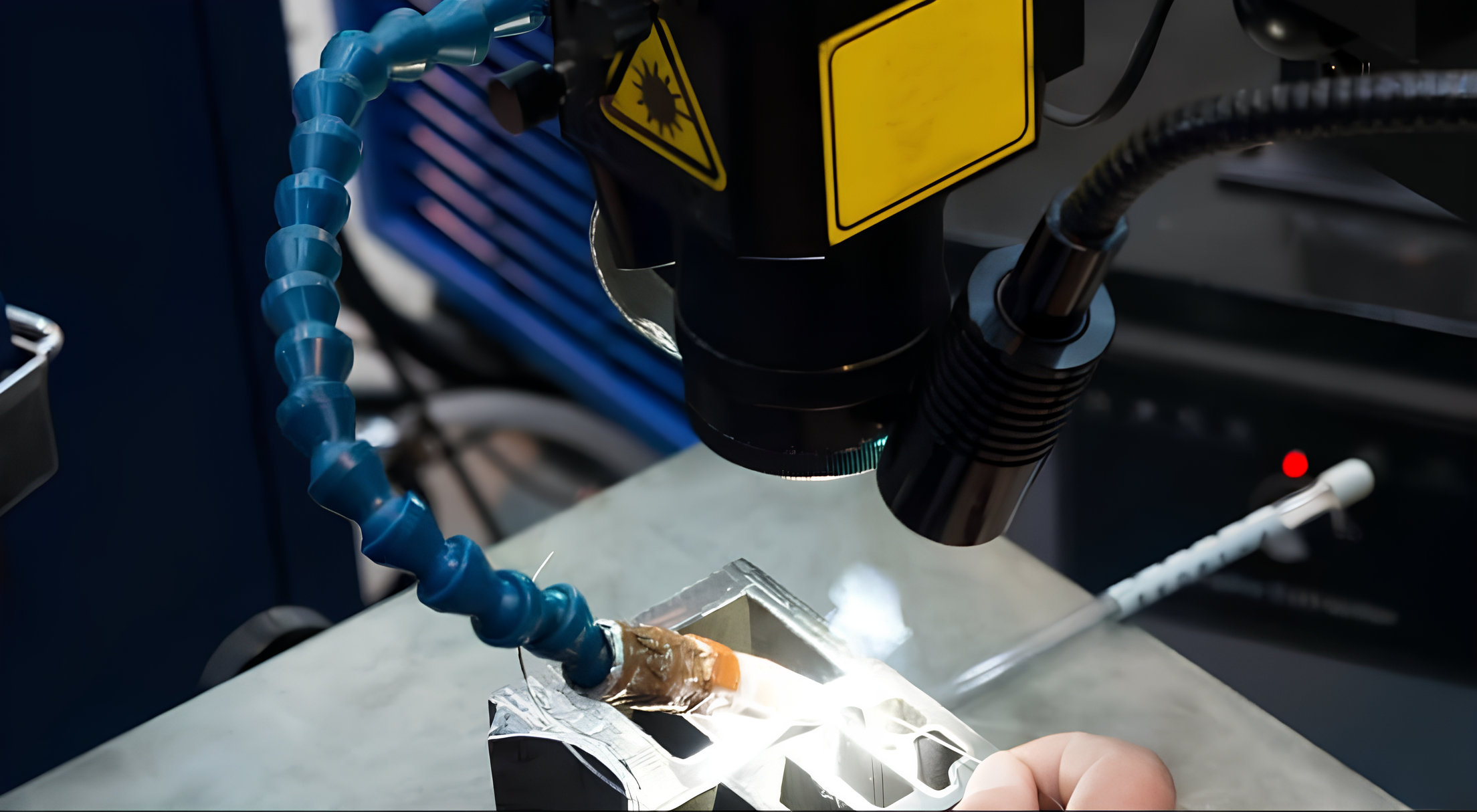

5. Welding Head
The welding head directs the focused laser beam to the workpiece. It typically includes: – A focusing lens. – Shielding gas to protect the weld area from contamination. – A protective nozzle to prevent damage to the welding head.
The welding head can be adjusted to control the heat input and distribution during the welding process.
Factors Affecting the Laser Welding Process
Several key factors affect the efficiency and quality of the laser welding process with a laser welder. These factors influence the penetration depth, weld width, and overall strength of the joint. Below are the main factors to consider:
Laser Power and Energy Density
- Laser power directly impacts the heat applied to the workpiece. Higher laser power increases penetration depth, while lower power may result in weak fusion.
- Energy density, defined as the power divided by the beam spot size, determines how concentrated the laser beam is on the material. A higher energy density leads to deeper penetration and more precise welds.
Laser Beam Focus and Spot Size
- The focus of the laser beam affects the spot size on the workpiece. Smaller spot sizes create higher energy density, leading to narrower and deeper welds.
- Adjusting the focus position ensures the optimal energy distribution for maximum penetration depth.
Material Properties
- The thermal expansion coefficient, thermal conductivity, and melting point of the material affect how it reacts to the laser beam. Materials with high reflectivity and absorption properties can impact weld efficiency.
- The laser absorptivity of a material is proportional to the square root of its resistivity, which changes with temperature.
Welding Speed
- Welding speed is inversely related to penetration depth. Higher welding speeds reduce the heat input, leading to a shallower weld. Finding the right speed for the material type and laser power is essential for the best results.
Protective Gas
- Protective gases like argon, helium, and nitrogen prevent oxidation and manage plasma during laser welding. Helium enables deeper penetration than argon due to lower plasma generation.
Pulse Duration and Beam Diameter
- Pulse duration impacts the heat-affected zone (HAZ): shorter pulses reduce heat spread, while longer pulses enlarge the HAZ, altering material properties.
- Beam diameter affects energy density: smaller diameters increase penetration, while larger ones create wider, shallower welds.
Surface Conditions
- The surface roughness and surface state of the material can significantly affect how the laser beam is absorbed. Polished surfaces generally improve laser absorption, leading to better welding results.
Welding Geometry and Joint Fit
- Proper joint preparation and alignment of the workpieces influence the penetration depth and weld quality. The gap between the workpieces and the assembly gap affect both the width and depth of the weld seam.
In conclusion, laser welding with a laser welder is revolutionizing manufacturing with its precision, speed, and versatility. As industries continue to evolve, this technology offers solutions that are not only efficient but also environmentally friendly. Looking ahead, laser welding holds the potential to shape the future of production, unlocking new possibilities across a wide range of sectors.
